VISION Auto Security Systems Car Graphic
Eliminate false alarm fears with Active Infra-Red shock sensing technology!

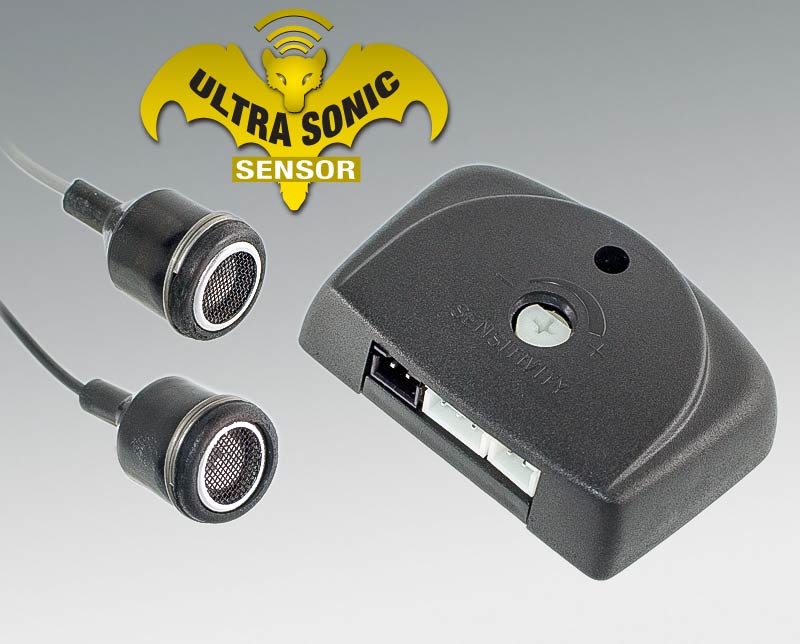

318-04 Ultrasonic Sensor Photo

iconVISION ultrasonic sensors use a small 44kHz transmitter and receiver to create an ultrasonic field in the vehicle. Even the smallest change in air pressure will trigger the sensor. But unlike RF field sensors, ultrasonic waves do not exit the vehicle and therefore will not false trigger from someone walking past your car while parked.
     The 318-04 also acts like an audio sensor in that it will detect glass breakage; but unlike audio sensors, the ultrasonic detector will not false trigger due to high pitched sounds like squeeky bicycle brakes. The 318-04 also replaces "current" sensors which watch the dome light to see if a door opens. If a door is opened even one inch, the 318-04 will trigger due to the change in air pressure.

Ultrasonic Sensor

318-04
Manual

RETAIL PRICE: ¥6,825
(Before Tax: ¥6,500) cart

price JAN:4996327017066
Sensitivity & Precision

Other Specifications

•

Module Size: 39x56x15mm

•

Sensor Size: 24x17x17mm (excluding mount)

•

Avg. Current Draw: 6.0mA

Several Sensors in One!

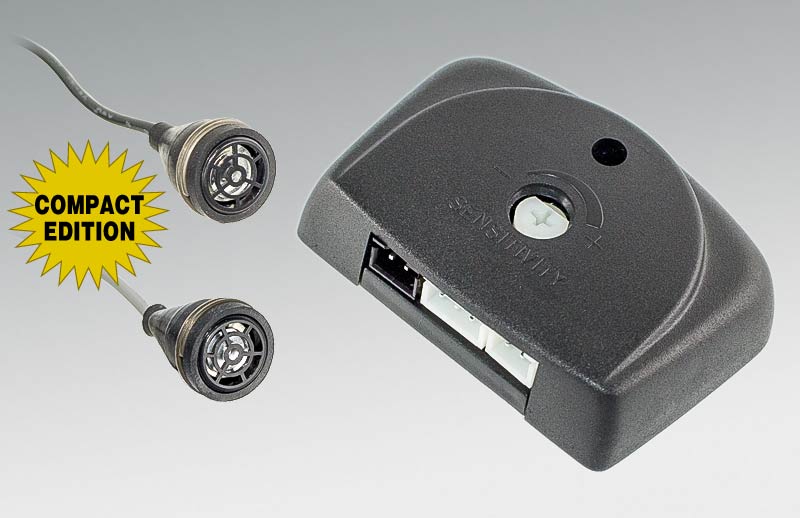

318-04M

Made with Freeway

KIRAMEK, Inc.


IMPORTANT NOTES
:

• This sensor does not guarantee prevention of vehicle theft.

• This sensor is compatible with all VISION security systems.

• The 318-04 is compatible with most any 3rd party car alarm that offers a trigger input.
• To avoid false triggers, it is recommended the sensitivity setting of this sensor not be set to absolute maximum.
